Master Bedroom Wardrobe

3-Row Split Door Design (Elevator-Safe) — Front Elevation
All dimensions in mm (W × H × D)

Width
2,700 mm
Height
3,100 mm
Depth
600 mm
Top
3 Flip-up (700mm)
Middle
6 Hinged (1900mm)
Bottom
6 Drawers (500mm)
Colour Option:
Section A — Long Hang
Section B — Long Hang
Section C — Double Hang
TOP STORAGE 700mm TOP STORAGE 700mm TOP STORAGE 700mm UPPER STORAGE 400mm UPPER STORAGE 400mm UPPER STORAGE 400mm rod 2000mm rod 2000mm rod 2000mm rod 1130mm 2700 mm 900mm 900mm 900mm 3100 mm 700mm 1900mm 500mm 1900mm easy reach 2100mm stretch
Carcass (light oak)
Doors — flip-up + hinged (warm white)
Drawers (light oak)
Gold knobs (doors + drawers)
Push-open (flip-ups)
Easy reach
Layout Summary:
Upper storage: 400mm zone above rods (2000–2400mm) for bags, boxes, hats
Section A: Long hang (rod at 2000mm, ~1480mm clearance for dresses/coats)
Section B: Long hang (rod at 2000mm, ~1480mm clearance for dresses/coats)
Section C: Double hang — upper rod at 2000mm (jerseys/shirts, 850mm), lower rod at 1130mm (short pants, 630mm)
Bottom: 6 full-width drawers (2 per section, 250mm each)
Transport (Lift ≤ 2100mm):
Flip-up doors (×3)900 × 700mm ✓
Hinged doors (×6)450 × 1900mm ✓
Drawers (×6)900 × 250mm ✓
Side panels600 × 1550mm ✓
Shelves≤ 900mm ✓
⚠ Contractor Notes:
Flip-up doors: Use quality gas struts (80–100N) for the 900×700mm panels — they're heavy. Ensure struts hold doors open hands-free. Install Blum Tip-On push-open mechanism (no handles on flip-ups).
Rod load: All 3 sections are hanging. Use oval chrome rods (30×15mm) with center support brackets if span exceeds 800mm. Each rod must hold 30–40kg.
Wall anchor: Even at 600mm depth, secure the wardrobe to the wall at the top. Prevents tipping during earthquake or if kids climb.
Floor leveling: At 3100mm tall, even 2mm out of level at the base = 10mm lean at the top. Use adjustable feet and check plumb on both sides.
Knob mounting: Pre-drill 25mm round knob holes centered on each hinged door and drawer face. Use M4 bolt-through fixing. Option 1 = gold finish, Option 2 = silver finish — confirm with owner before ordering.
✅ Owner Tips:
Drawer slides: Request soft-close, full-extension slides (e.g. Blum Tandem). You'll open these drawers daily — cheap slides wear out fast.
Door hinges: Use soft-close hinges for all 6 middle doors. Clip-on type (e.g. Blum Clip Top) makes future adjustment easy.
Knob size: Small round knobs — 25–30mm diameter recommended. Too small feels fiddly; too large looks disproportionate on 450mm-wide doors.
Interior lighting: Ask for LED strip inside the upper storage and hanging zones. Rechargeable motion-sensor strips work great if no wiring is available.
Ventilation: Ensure the back panel has ventilation holes or a small gap at the top/bottom to prevent musty smell in the hanging zones.
Rod height: Rods are set at 2000mm (slight stretch for 170cm). Ask contractor to pre-drill extra holes at 1900mm in case you want to lower them later.
3D Reference (AI-generated)

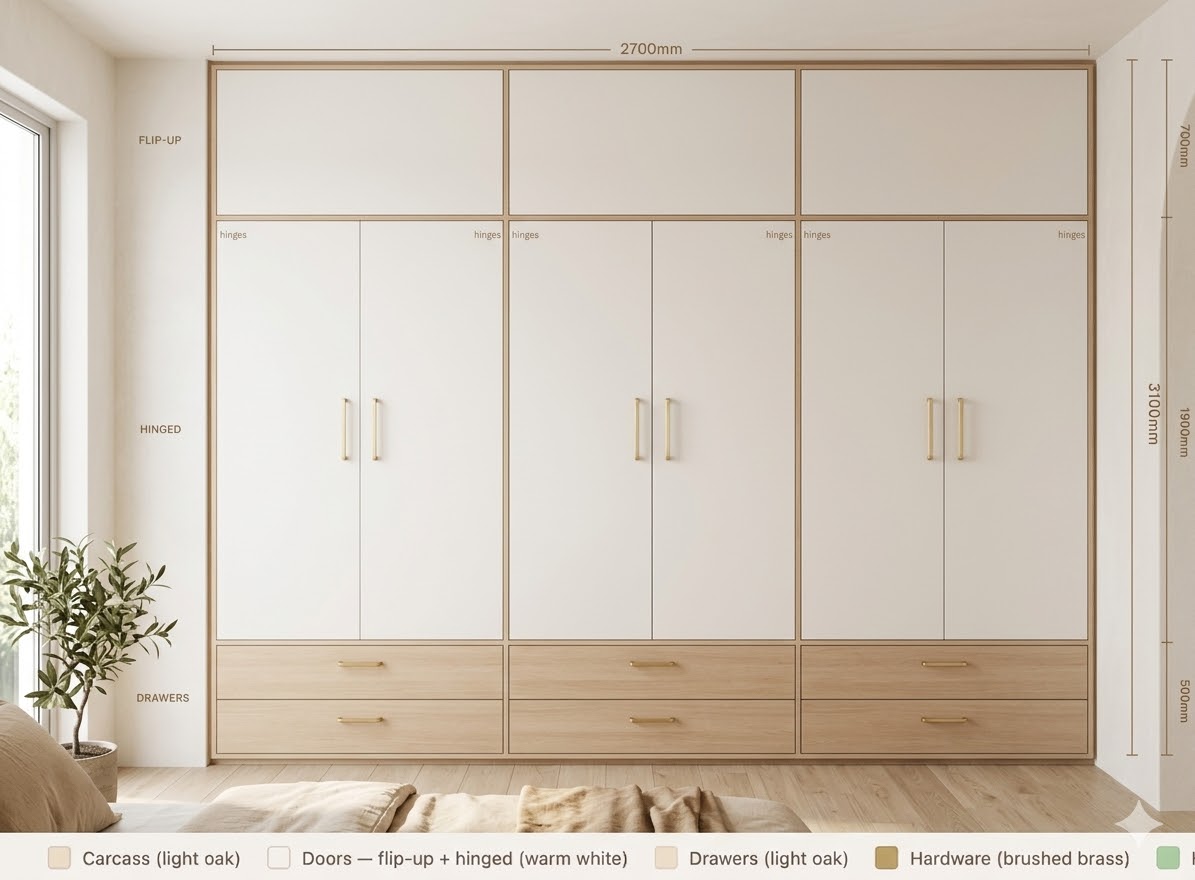

Option 1 — Original
Original (brass bar handles)
Option 1 — Gold knobs
Updated (gold round knobs + push-open)
Option 1 — Light Oak + Warm White
