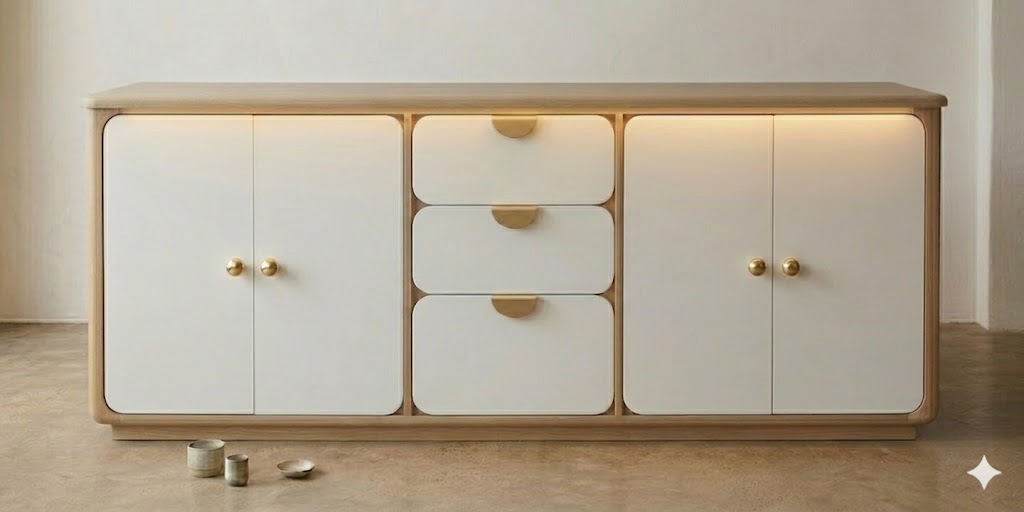

Layout Summary:
Countertop: 2340 × 400 × 20mm — light oak, seamless with carcass, rounded edges
Left cabinet: 870 × 880 × 400mm — double hinged doors (435mm each), matte white fronts, gold round knobs, 2 adjustable shelves. Bags, shoes, umbrellas.
Drawer 1 (top): 600 × 260 × 400mm — matte white front, gold round knob. Keys, wallet, sunglasses.
Drawer 2 (mid): 600 × 260 × 400mm — matte white front, gold round knob. Mail, letters, stationery.
Drawer 3 (bottom): 600 × 360 × 400mm — matte white front, gold round knob. Taller for bags/bulky items.
Right cabinet: 870 × 880 × 400mm — double hinged doors (435mm each), matte white fronts, gold round knobs, 2 adjustable shelves. General/seasonal storage.
Plinth: 100mm H, recessed 50mm from front — protects base from kicks and mopping
Transport (Lift ≤ 2100mm):
Door panels (×4)435 × 880mm ✓
Drawer fronts (×3)600 × 260–360mm ✓
Countertop slab2340 × 400mm ✓
Side panels (×2)400 × 880mm ✓
Divider panels (×2)400 × 880mm ✓
Adj. shelves (×4)≤ 870mm ✓
Back panels (×3)870 / 600 / 870 × 880mm ✓
Plinth board2240 × 100mm ✓
⚠ Contractor Notes:
Knob mounting: Pre-drill centered holes on all 4 door fronts and 3 drawer fronts for 25–30mm gold round knobs. Use M4 bolt-through fixing. Door knobs at mid-height on the opening edge; drawer knobs centered on face.
Hinge placement: Concealed hinges (e.g., Blum CLIP top). Left cabinet: L1 hinges left, L2 hinges right. Right cabinet: R1 hinges left, R2 hinges right. All soft-close.
Rounded edges: 6mm radius on all exposed carcass corners. Match countertop edge profile. Note: Entryway base cabinet, TV console (living room), and dining room cabinet all use rounded edges — maintain consistency across these three pieces.
Wall anchor: L-brackets at top rear — critical for a shallow (400mm) cabinet at 1000mm height.
Plinth 踢脚线: Recess 50mm from door face. Use adjustable feet behind the plinth for leveling. Creates toe clearance and prevents scuff marks from shoes.
✅ Owner Tips:
Drawer organizers: Drawer 1 — felt-lined tray with compartments for keys/wallet. Drawer 2 — letter-sized dividers. Drawer 3 — leave open for bags.
Soft-close: All 3 drawers + 4 doors with soft-close mechanism.
Knob size: Gold round knobs — 25–30mm diameter. Matches wardrobe Option 1 hardware. Easy single-finger pull for daily grab-and-go items.
Shelf config: Left cabinet: top shelf high for bags, bottom shelf low for shoe rows. Right cabinet: adjust based on stored items.
Above cabinet: 1000mm height leaves wall space — mirror, hooks, or floating shelf. Power outlet behind for phone charging on countertop.
Entrance proximity: Ensure the cabinet doesn't block the door swing. Leave minimum 100mm clearance from the door arc.
Colour Palette — Matte White + Light Oak (matches Dining Room):
Matte White
All door + drawer fronts
#FAF8F5
Light Oak
Carcass + countertop
#EEDCC6
Satin Gold
Round knobs (doors + drawers)
#C4A265
Warm Taupe
Plinth 踢脚线
#D4C4B0
Matte white fronts echo the dining room cabinet's upper white doors (#FAF8F5), creating visual continuity in the same space. Light oak carcass and countertop tie to the dining room's oak base and frame. Gold round knobs (25–30mm) on all doors and drawers — consistent with condo-wide knob hardware.
